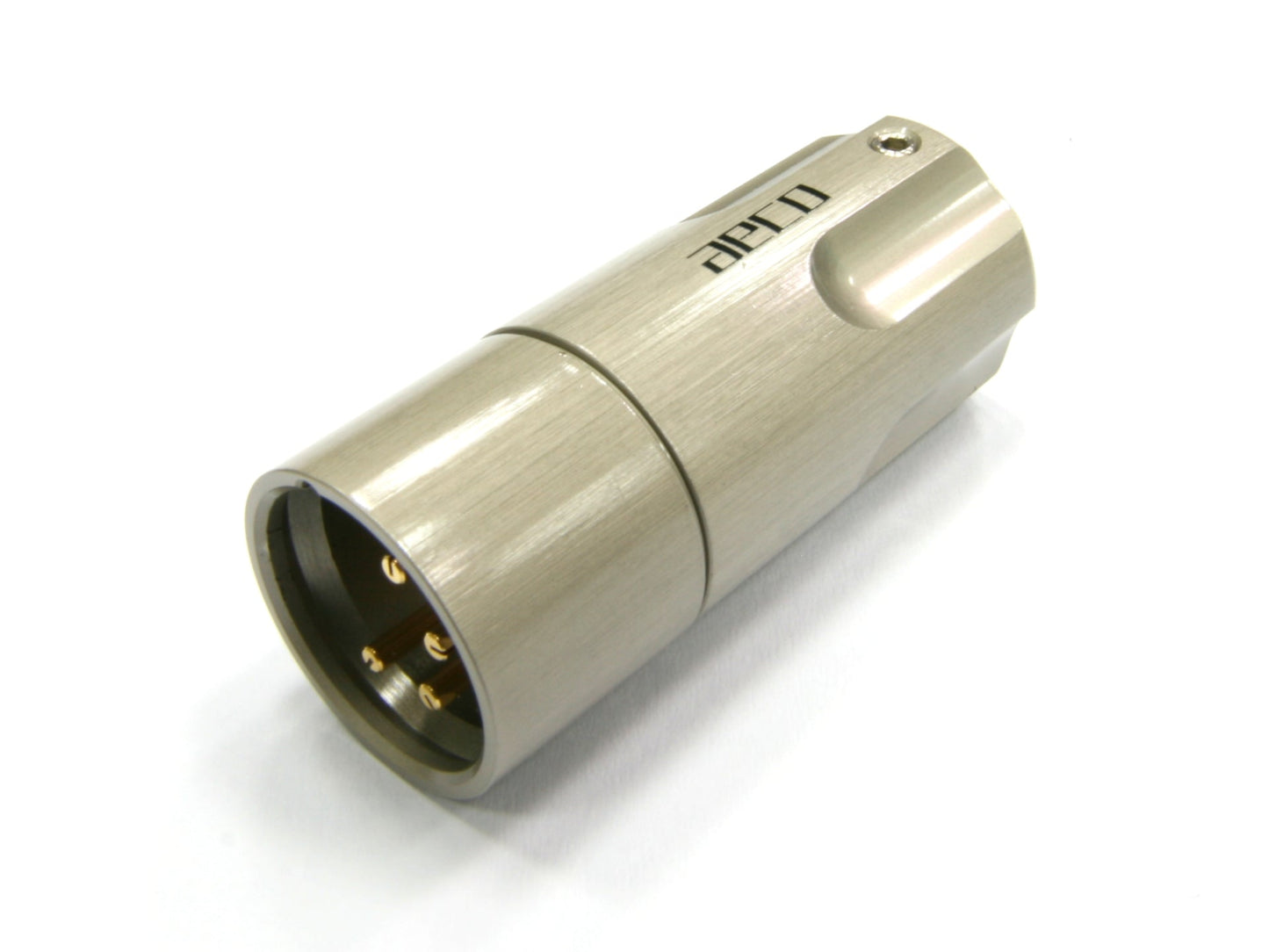

AX4-1611G

Name: AX4-1611G
Brand: aeco
SKU: AX4-1611G
Price: 40.0 USD
Availability: InStock

$40.00 USD

Sale Sold out

Product type XLR

Surface Treatment Gold Plated

Quantity

1 Pcs / 1 Set, Vacuum Bag
Conductor with the grooving design in order to add the surface area.
Conductor is made from high-purity copper.
Conductor between body isolate by PTFE insulator.
Maximum support to 12mm.

Note

It is suitable with other standard female XLR products which has button.

Concept

It can be assort with other standard XLR.

Conductor with the grooving design in order to add the surface area.

Conductor between body isolate by PTFE insulator.

The conductor is made from high-purity tellurium copper without nickel plating.

By using highest quality of design techniques and material to provide customer who has "Hi-End" requirement.

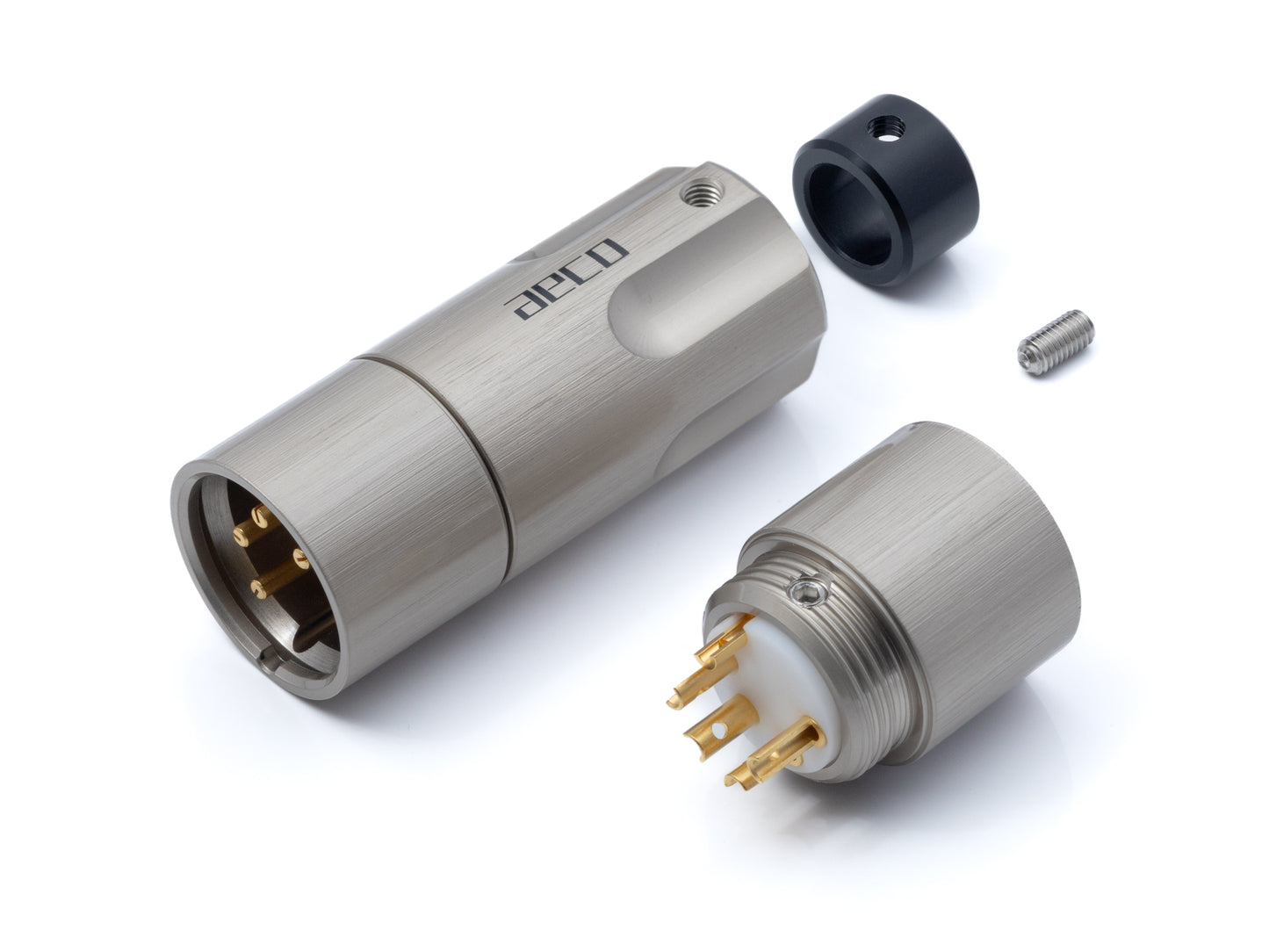

Mechanical structure

The center pin is fixed to the PTFE insulator by assemble function.
The PTFE insulator fixed on the body by using screw.

The body and the shell locked by screwing.
POM sleeve is fixed with end of shell by using screw.
The cable hole with sleeve is 8.5mm, without sleeve is 12.5mm.

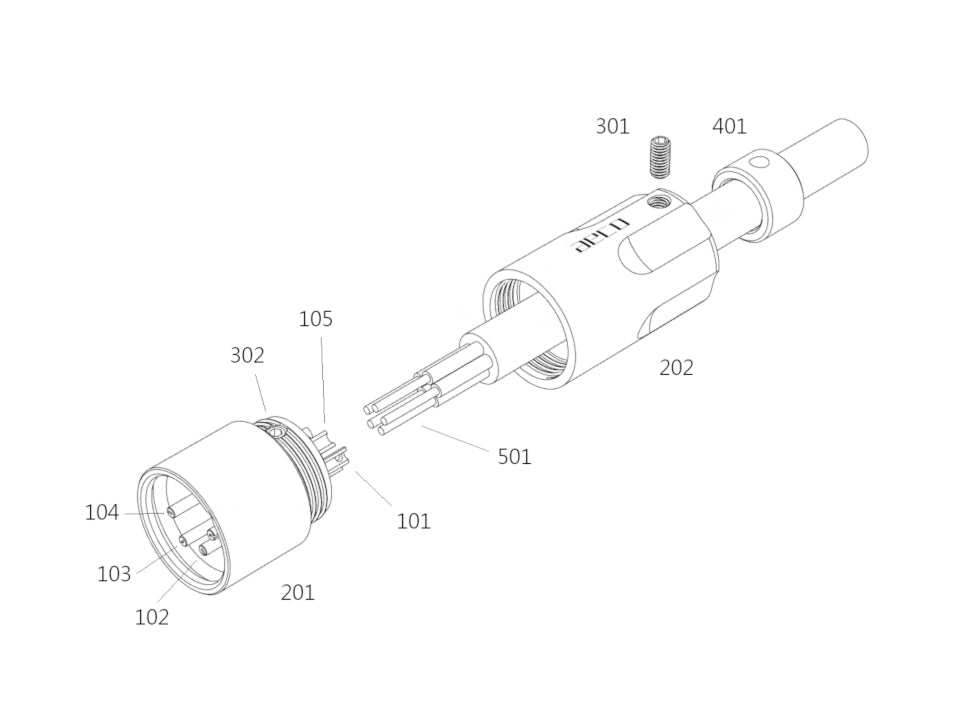

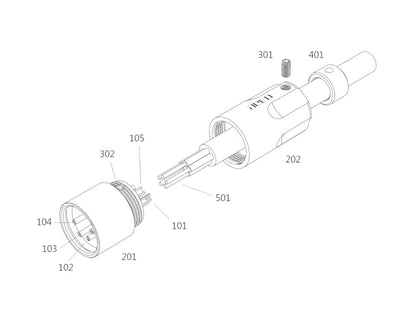

Assembly

1. We recommend to peel off the cable jacket[501] and each insulation of conductor.

2. Using the sleeve ( ID8.5mm) [401] or using the shell without sleeve ( ID12.5mm), depend on the cable outside diameter.

3. Please put the cable through the shell[202] and sleeve [401].

4. Solder the conductor on each signal pin. [101][102][103][104]

5. Depends on your need to solder the ground pin.

6. Please lock the shell [202] on body set [201]

7. Please fix the cable and shell through screw(M3x6mm)[301]

[501]'s 5th channel conductor, as the schematic diagram ,It may means full coverage braided .

Specification

Material:
Contact Pin: Tellurium copper (C14500 / copper contains over 99%).
Ground Pin: Brass alloy (C3604)
Insulator: PTFE
Body: Brass alloy (C3604)
Shell: Brass alloy (C3604)
Sleeve: POM
Screw: Stainless Steel (SUS304)

Finish:
Contact pin: 10u" Gold plating (no nickel base).
Shell ground pin: 10u" Gold plating (no nickel base).

Insulator: None.
Body: Satin Nickel + Topcoat.
Shell: Satin Nickel + Topcoat.
Plastic Steel: None.
Screw: None.

Electrical Characteristics:
Contact resistance < 1.0 mOhm

Dimension:
Biggest OD: 18.9mm
Total Length: 46.0mm
