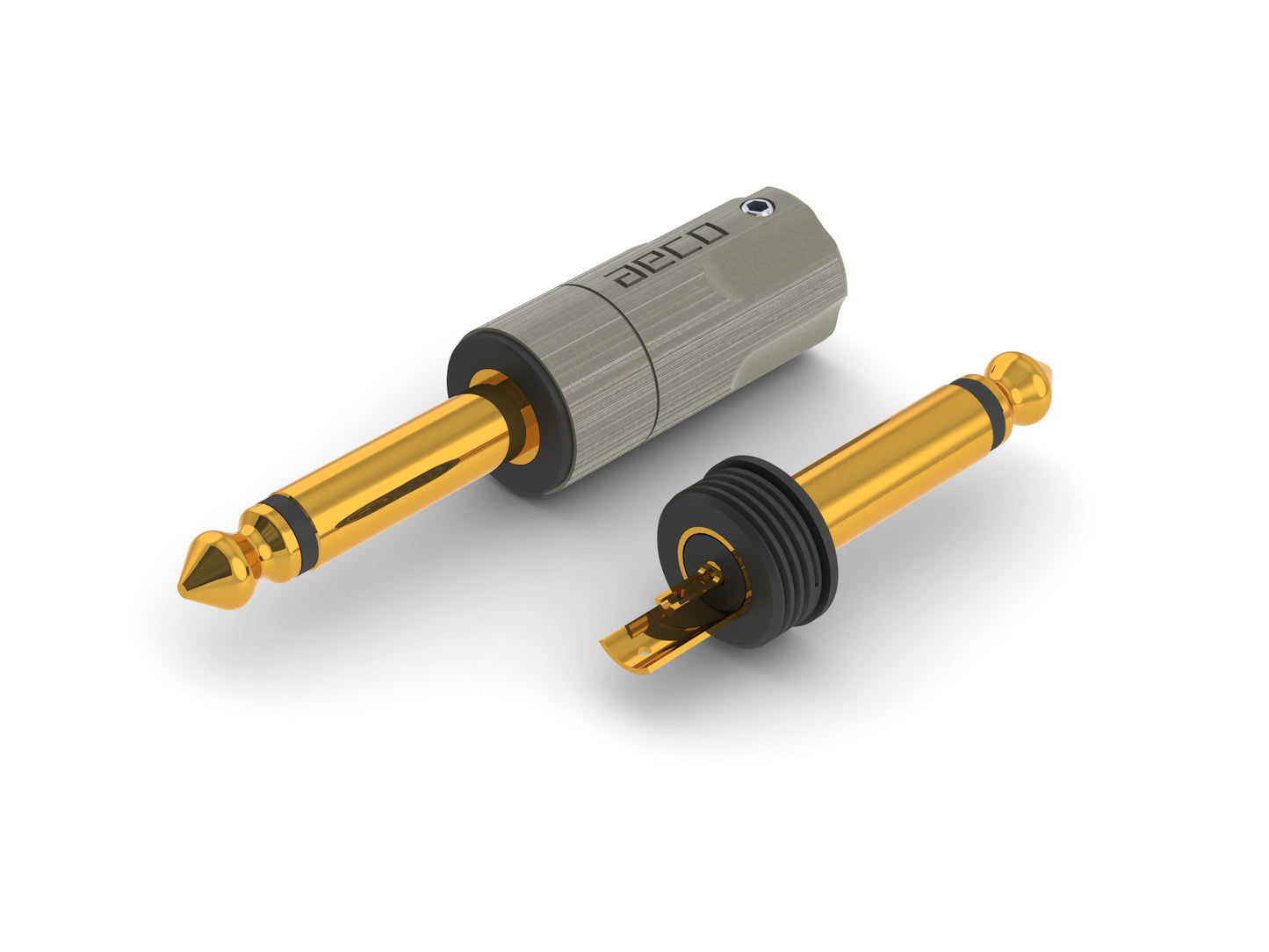

AT6-1221G
AT6-1221G

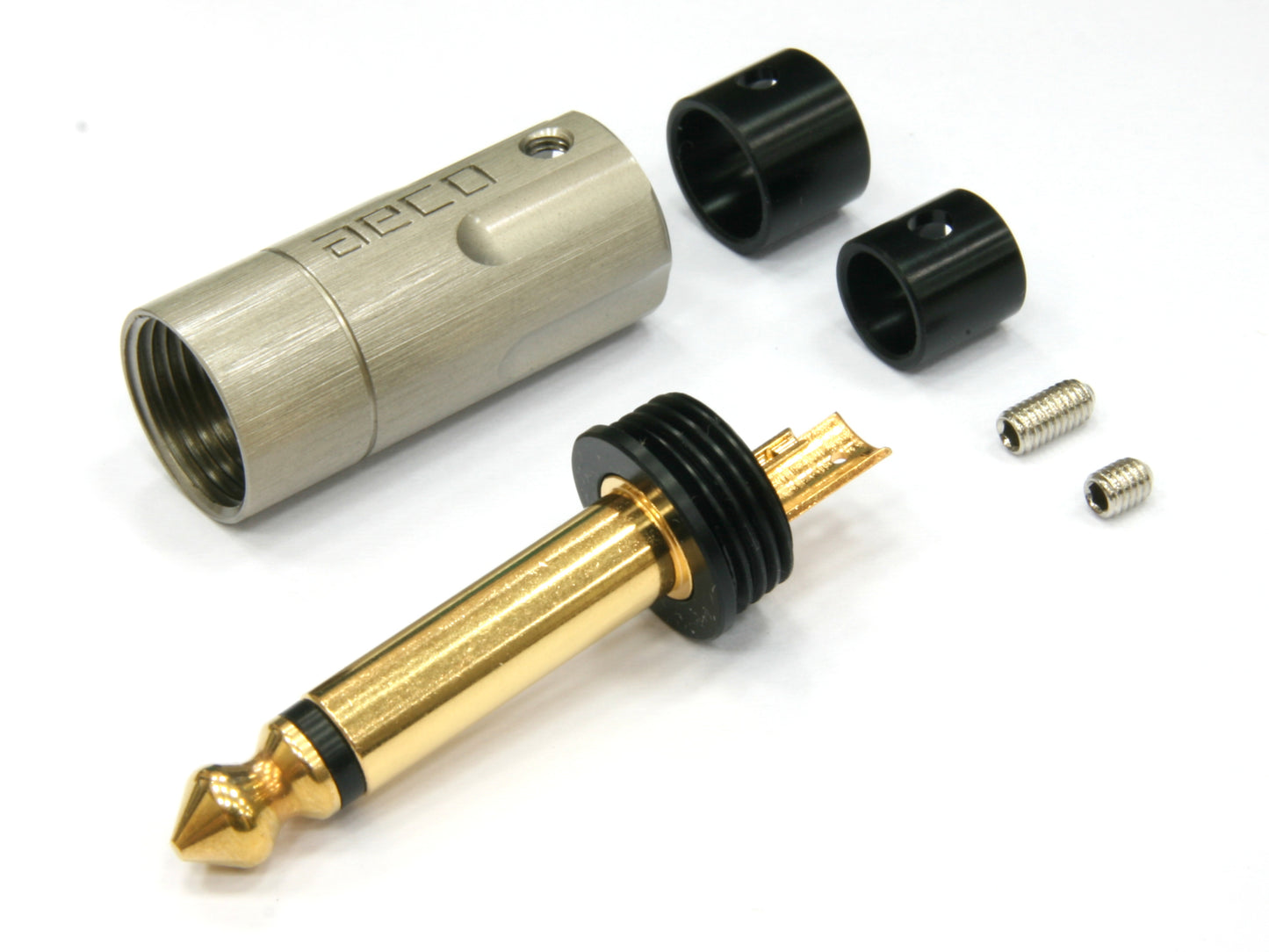

- 1 Pcs / 1 Set, Vacuum Bag
- Made by CNC lathing as one shape.
- Shell can be isolated with body.
- High-purity copper(over 99%) made.
Note
Note
This product is include: screw for cable 4 mm*1pcs and 6 mm*1pcs.
Concept
Concept
The body of plug was lathed in one piece to avoid the conduction loss when signal through the different structure and interface.
Shell between body isolate by insulator material. Depends on the method of processing, it can choose to make the shell be a conductor.
The conductor is made from high-purity tellurium copper without nickel base.
By using highest quality of design techniques and material to provide customer who has "Hi-End" requirement.

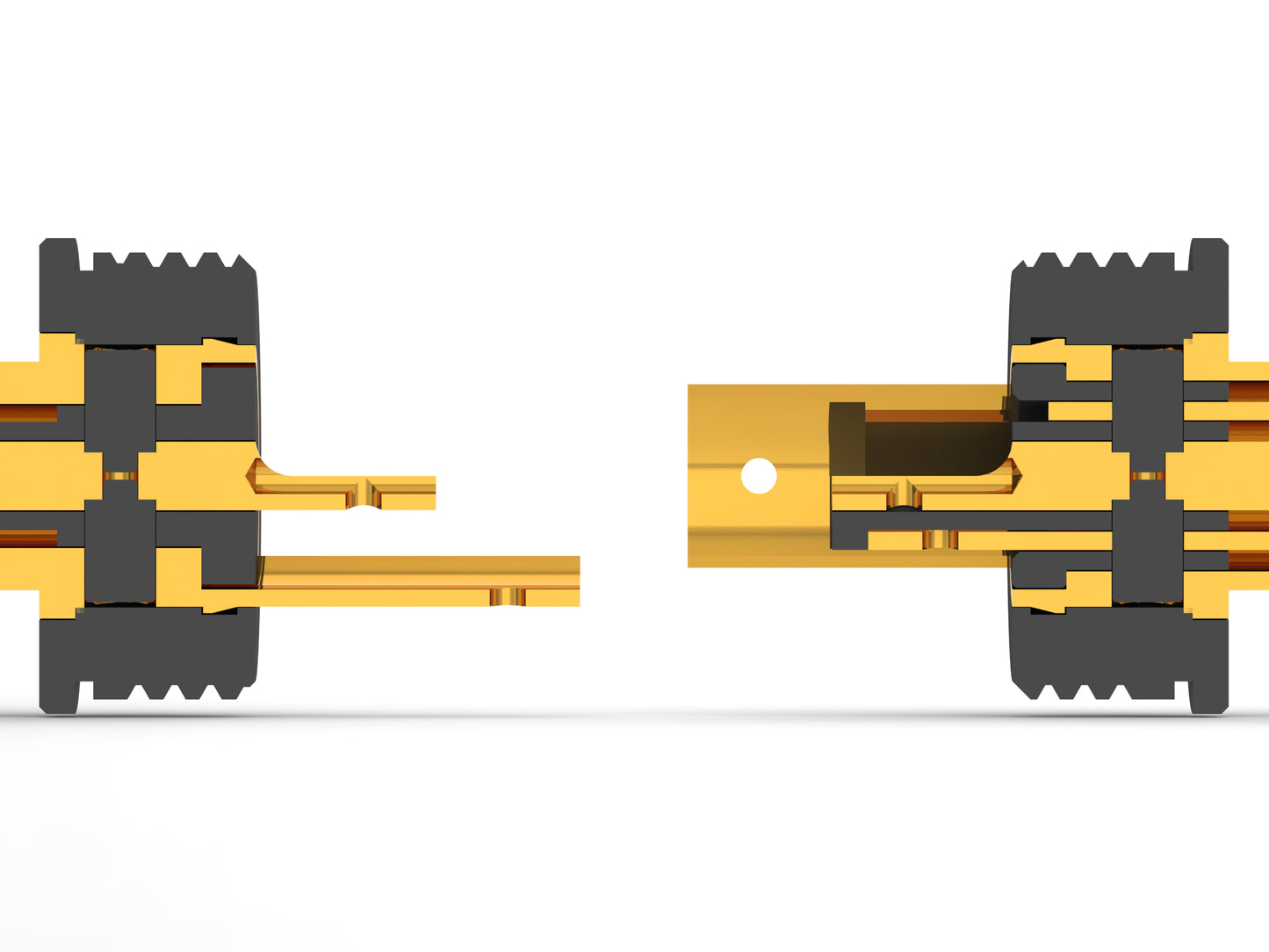

Mechanical structure
Mechanical structure
The center pin is fixed to the POM insulator by assemble function.
Each channel is separate by POM, then assemble with center pin.
Use the POM latch through each channel in order to fix the body.
The body and the shell locked by screwing.
POM sleeve is fixed with end of shell by using screw.
The cable hole with small POM sleeve is 6.5mm, bigger POM sleeve is 8.5mm Without POM sleeve is 10.5mm.

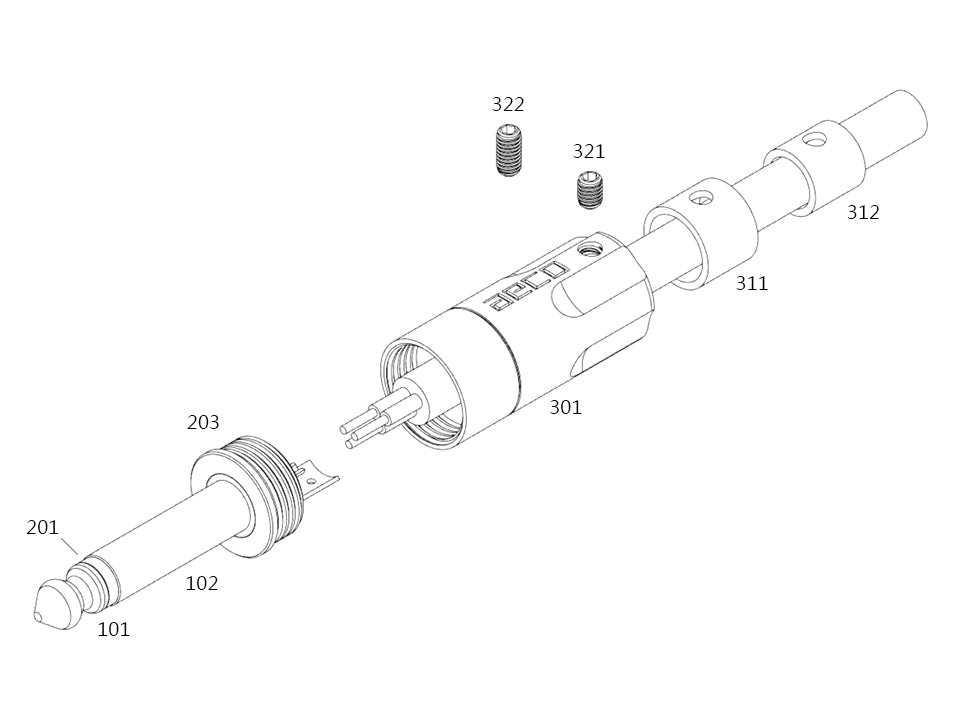

Assembly
Assembly
1. We recommend to peel off the cable jacket and per conductor wire insulation.
2. Depends on cable size to use small POM sleeve (ID 6.5mm) [312], or bigger POM sleeve (ID 8.5mm) [311] or without POM sleeve (ID10.5MM) [301].Then through into cable.
3. Contact the cable with per channel by soldering.
4. Lock the shell and body [203]
5. Please lock the cable and shell with a screw [321 / 322].
Specification
Specification
Material:
Contact Pin: Tellurium Copper (C14500 / copper contains over 99%)
Body: Tellurium Copper (C14500 / copper contains over 99%)
Insulator: POM (Black)
Lock head: POM (Black)
Shell: Brass alloy (C3604)
Sleeve: POM (Black)
Screw: Stainless steel (SUS304)
Finish:
Contact pin: 10u" Gold plating (no nickel base).
Body: 10u" Gold plating (no nickel base).
Insulator: None.
Head lock: None.
Shell: Satin Nickel + Topcoat.
Sleeve: None.
Screw: None.
Electrical Characteristics:
Contact resistance < 1.0 mOhm
Dimension:
Biggest OD: 13.5mm
Total Length: 63.0mm
Recommend soldering temperature
Recommend soldering temperature
Temperature Soldering Iron, please keep 400°C within 15 second.
Temperature Soldering Iron, please keep 420°C within 10 second.
Temperature Soldering Iron, please keep 440°C within 08 second.
