AT3-1351S

AT3-1351S

Regular price $40.00 USD
Regular price Sale price $40.00 USD
Sale Sold out
Product type
Surface Treatment
  • 1 Pcs / 1 Set, Vacuum Bag
  • Made by CNC lathing as one shape.
  • Shell can be isolated with body.
  • High-purity copper(over 99%) made.




Note

This product is include: screw for cable 3 mm*1pcs and 4 mm*1pcs.

Due to the 3.5mm plug size is small, the over soldering time will cause the insulator damage or swelling. Please process solder each channel based on recommend soldering temperature and condition.

Concept

The body of plug was lathed in one piece to avoid the conduction loss when signal through the different structure and interface.

Shell between body isolate by insulator material. Depends on the method of processing, it can choose to make the shell be a conductor.

The conductor is made from high-purity tellurium copper without nickel base.

By using highest quality of design techniques and material to provide customer who has "Hi-End" requirement.

Mechanical structure

The center pin is fixed to the POM insulator by assemble function.
Ring and the end sleeve is separate by POM, then assemble with center pin.
There’s a hole between the contact pin and body structure.
To put the fillers into the gap of the body from the hole.
Use the POM latch through to fix the body.

The body and the shell locked by screwing.
POM sleeve is fixed with end of shell by using screw.

Assembly

1. We recommend to peel off the cable jacket and per conductor wire insulation.

2. Depends on cable size to decide whether use sleeve (ID 4.5mm) [311], or without sleeve (ID6.5MM) [301].Then through into cable.

3. Contact the cable with per channel by soldering.

4. Lock the shell and body [203].

5. Please lock the cable and shell with a screw M3x4mm [321] or M3x3mm [322].​

Specification

Material:
Contact Pin: Tellurium Copper (C14500 / copper contains over 99%)
Body: Tellurium Copper (C14500 / copper contains over 99%)
Insulator: POM (Black)
Lock head: POM (Black)
Shell: Stainless steel (SUS304)
Sleeve: POM (Black)
Screw: Stainless steel (SUS304)

Finish:
Contact pin: 120u" Silver plating (no nickel base).
Body: 120u" Silver plating (no nickel base).

Insulator : None.
Head lock : None.
Shell : None.
Sleeve : None.
Screw : None.

Electrical Characteristics:
Contact resistance < 1.0 mOhm

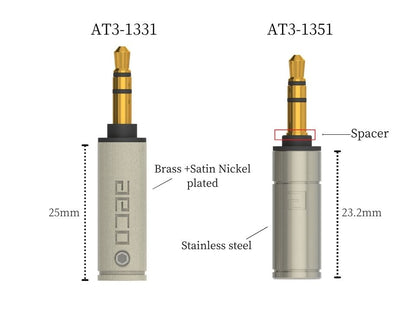

Dimension:
Biggest OD: 8.90 mm
Total Length: 40.5mm
Cable hole:
Sleeve contained in shell is 4.5mm.
Sleeve not contained in shell is 6.5mm.

Recommend soldering temperature

Contact pin (Tip)
Temperature Soldering Iron, please keep 340 °C within 4~7 second.
Temperature Soldering Iron, please keep 360 °Cwithin 3~6 second.
Temperature Soldering Iron, please keep 380 °C within 2~5 secondTemperature Soldering Iron, please keep 400 °C within 1~4 second.

Body (Ring)
Temperature Soldering Iron, please keep 340 °C within 9~12 second.
Temperature Soldering Iron, please keep 360 °C within 6~9 second.
Temperature Soldering Iron, please keep 380 °C within 5~8 secondTemperature Soldering Iron, please keep 400 °C within 2~5 second.

Body (Sleeve)
Temperature Soldering Iron, please keep 340 °C within 6~9 second.
Temperature Soldering Iron, please keep 360 °C within 5~8 second.
Temperature Soldering Iron, please keep 380 °C within 3~6 secondTemperature Soldering Iron, please keep 400 °C within 2~5 second.

Product production process comply with RoHS.

This product obtains R.O.C. Patent No. M581795.
