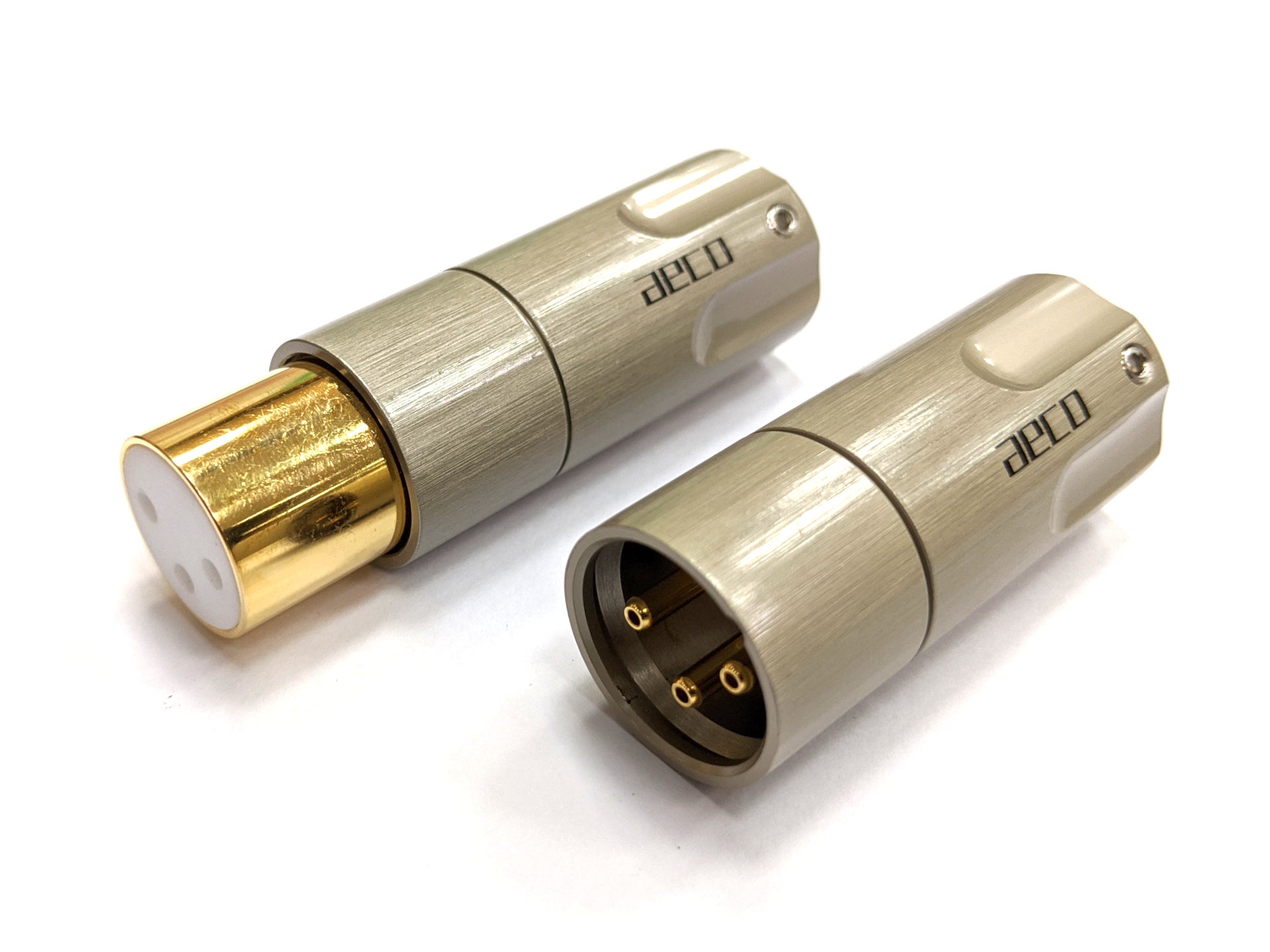

AMI-1060G

AMI-1060G

Regular price $70.00 USD
Regular price Sale price $70.00 USD
Sale Sold out
Product type
Surface Treatment
  • 2 Pcs(Male+Female) / 1 SetVacuum Bag
  • "One Point Contact” structure.
  • Conductor is made from high-purity copper.
  • PTFE insulation.
  • Maximum support to 12mm.

Note

The design of the Female end does not come with button,
however, it is suitable with other standard XLR products which has button.​

Concept

It can be assort with other standard XLR.

Non-coaxial conduction are able to use single point conduction while plug connect to jack.

Conductor between body isolate by PTFE insulator.

The conductor is made from high-purity tellurium copper without nickel plating.

By using highest quality of design techniques and material to provide customer who has "Hi-End" requirement.

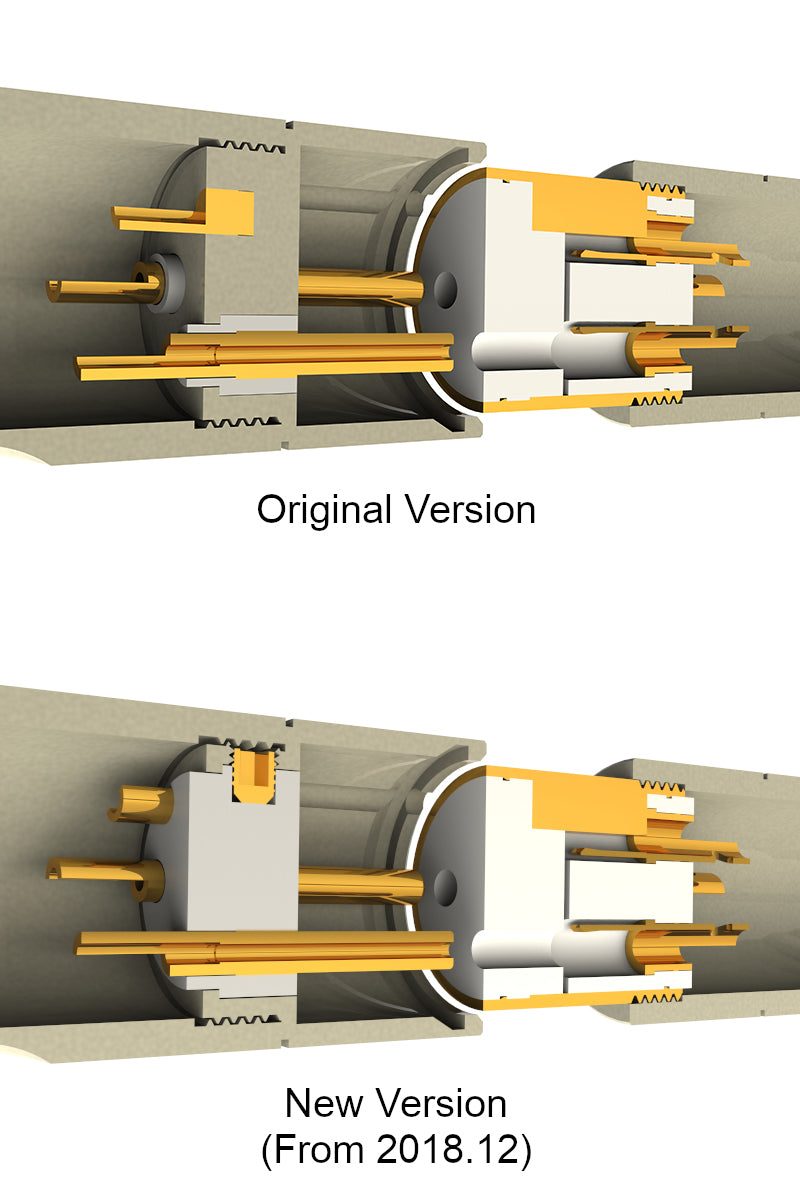

Mechanical structure

The insulator of the Male end is fixed to the body by assemble function.
The hollow pin is fixed to the PTFE insulator by assemble function.
The grounding is riveting to the body on the Male end
Contact pin for the Female end is fixed inside of PTFE insulator by assemble function.
The PTFE insulator of the Female end fixed on the body by latch function.
The body and the shell locked by screwing.
POM sleeve is fixed with end of shell by using screw.
The cable hole with sleeve is 8.5mm, without sleeve is 12.5mm.

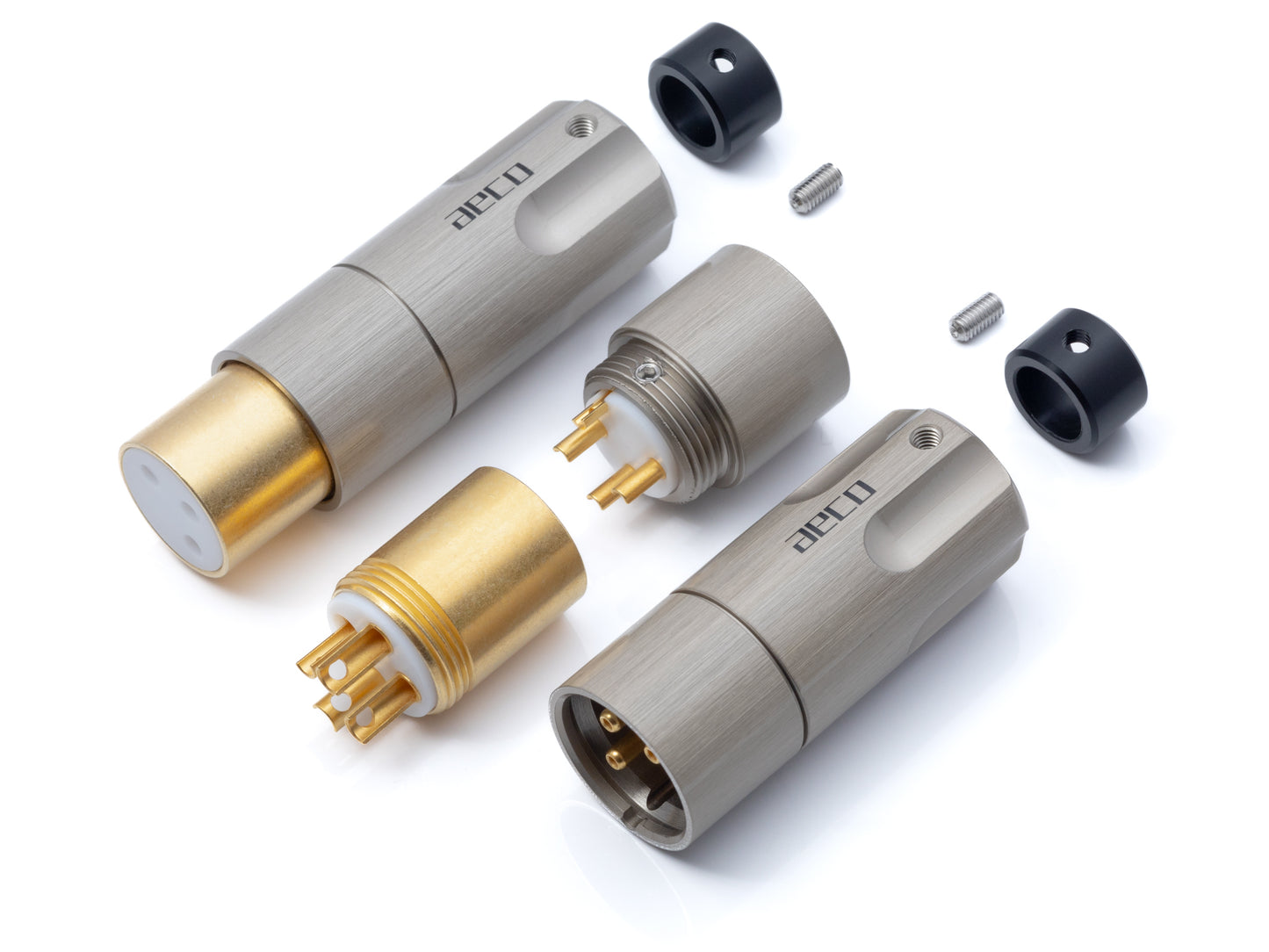

Assembly

Specification

Material:
Contact pin:
Male - Tellurium copper (C14500 / copper contains over 99%).
Female - Tellurium copper (C14500 / copper contains over 99%).

Ground pin:
Male - Brass alloy (C3604).
Female - Tellurium copper (C14500 / copper contains over 99%).

Insulator: PTFE
Body: Brass alloy (C3604).
Shell: Brass alloy (C3604).
Sleeve: POM .
Screw: Iron.

Finish:
Contact pin: 10u" Gold plating (no nickel base).
Shell ground pin: 10u" Gold plating (no nickel base).
Body:
Male - Satin Nickel + Topcoat.
Female - 10u" Gold plating (no nickel base).

Insulator: None.
Shell: Satin Nickel + Topcoat.
Plastic Steel: None.
Screw: Nickel plating.

Electrical Characteristics:
Contact resistance < 1.0 mOhm (It was test by Ami-1060.)

Dimension:
Biggest OD: 18.9mm
Total Length:
Male: 46.0mm
Female: 59.5mm

Recommend soldering temperature

Temperature Soldering Iron, please keep 400°C within 10 second.
Temperature Soldering Iron, please keep 450°C within 05 second.

Product production process comply with RoHS.
